AIV application allows its users to dynamically link widgets that are present across different layers and tabs.

For instance, if a table and chart are linked dynamically, then on the click of any cell in the table, detail of that particular cell will be displayed in the chart.

In order to better understand how this is achieved, we will create a table about sales of different products, and link it to a chart widget dynamically.

In order to do so,follow the steps below:-

1. Click on hamburger icon.

2. Click on visualization tab and open Line Chart in edit mode.

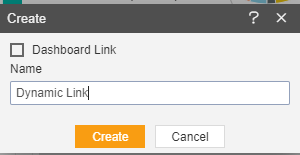

3. The Create Dashboard Dialog box will pop up on screen. Enter Dashboard Name as shown in Figure.

4. Click on Create After entering Dashboard Name in dialog box.

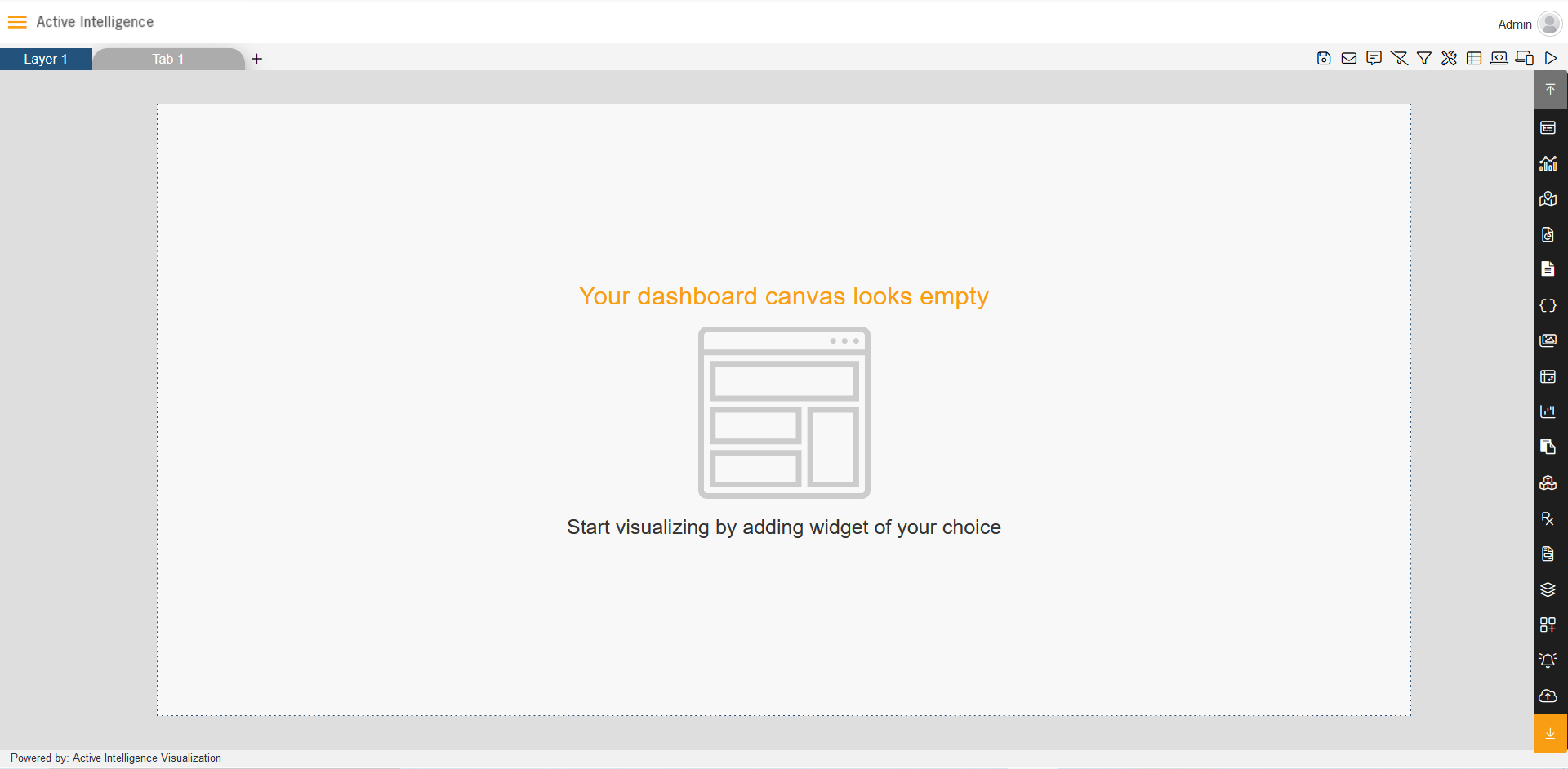

5. You will see an Empty Dashboard, As shown in figure below:

6. From Right Vertical Menu Select the Table Widget icon.

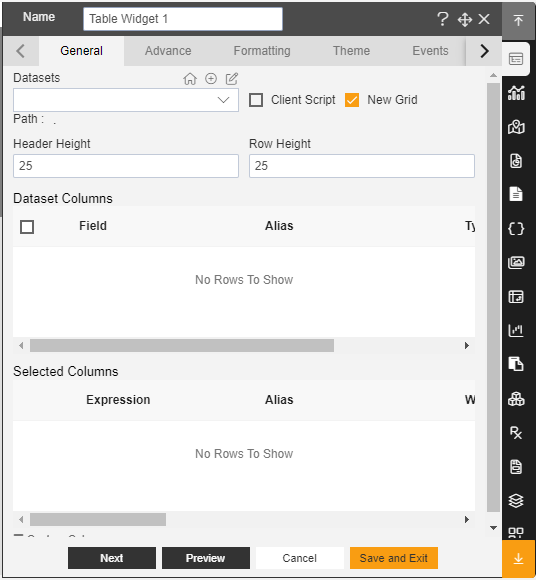

7. The Edit menu box appears as you click on Table Widget icon. And a widget gets added in content place automatically in dashboard, As shown in figure Below:

8. Enter Following details in chart controls:
Datasets: Salesb.ds
Header Height: 40
Row Height: 30

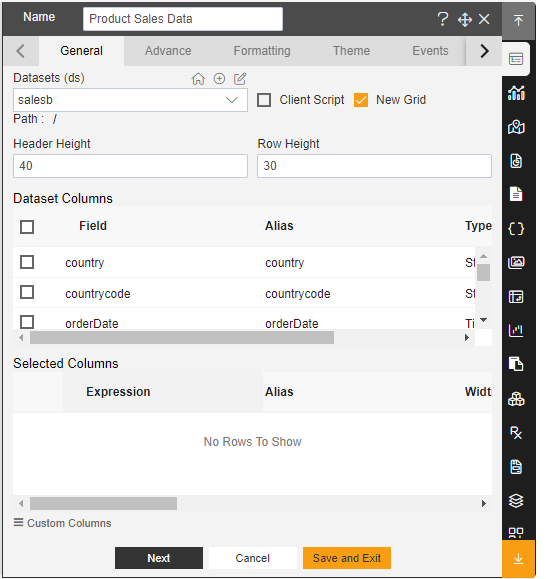

9. Fill above details in edit box, As Shown in figure:

10. Click on Preview and Save and Exit.

11. From Right Vertical Menu Select the chart Widget icon.

12. The Edit menu box appears as you click on Chart Widget icon. And a widget gets added in content place automatically in dashboard.

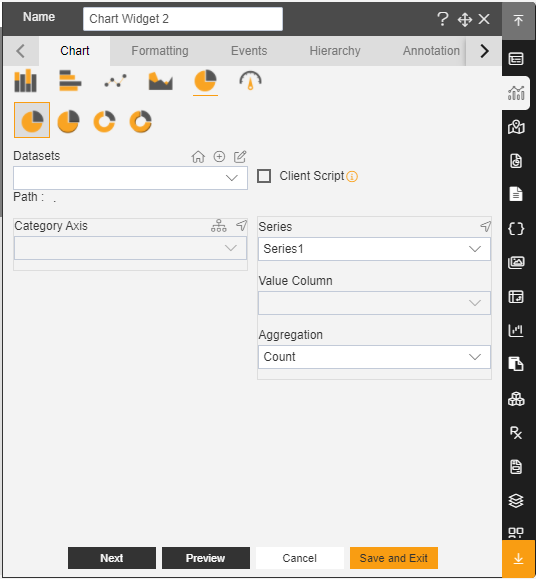

13. In Chart Widget Select Pie & Donut chart and click on Pie Chart, As shown in Figure Below:

14. Enter Following details in chart controls:
Datasets: Salesb.ds
Category Axis: ProductLine
Value Column: OrderNumber
Aggregation: Sum

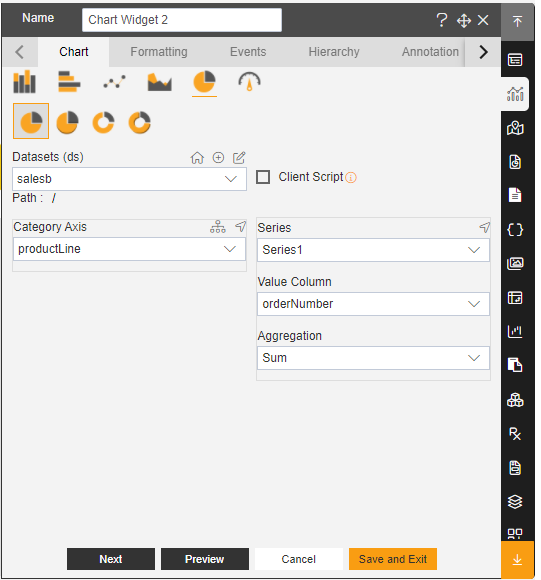

15. Fill above details in edit box, As Shown in figure:

16. Click on Preview and Save and Exit.

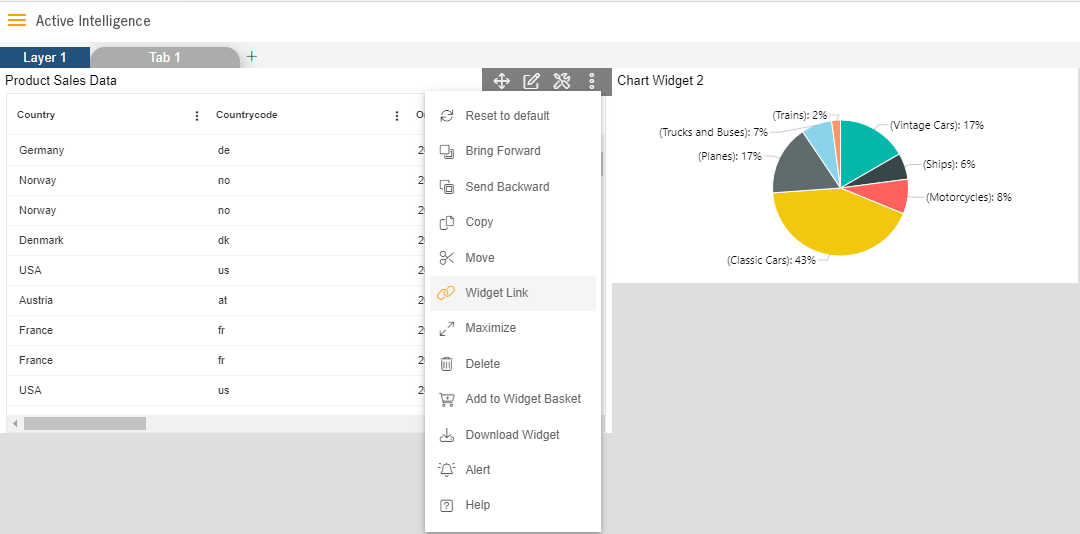

17. Click on the side ellipsis in your table widget and Select Widget Link As shown in Figure Below:

18. Enter Following details in Widget Link:
Linked Column: ProductLine
Layer: Layer1
Tab: Tab1
Chart Widget: ProductLine

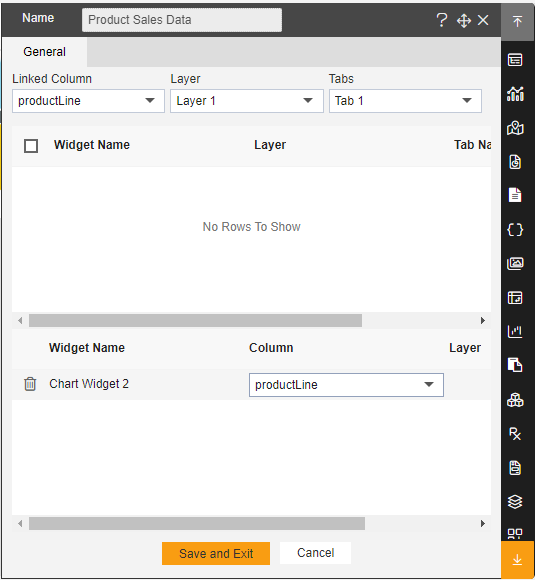

19. Fill above details in edit box, As Shown in figure;

20. Click on Save and Exit.

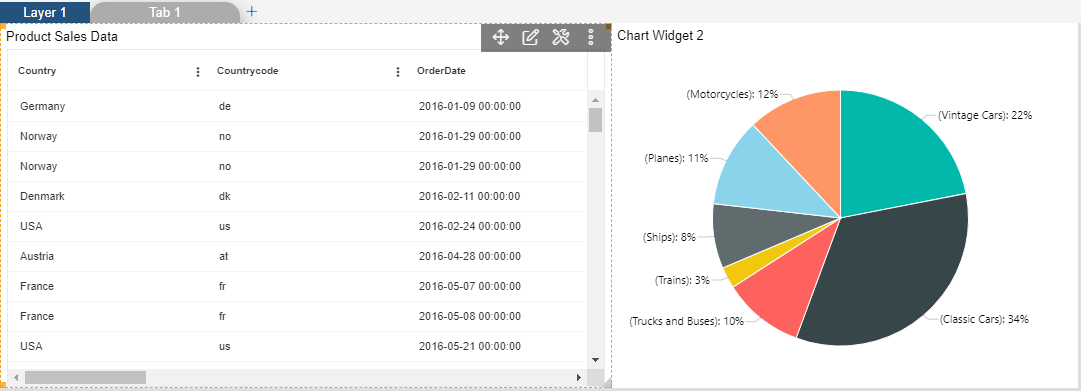

21. Now, match your Dynamic Link with the below example, it should look like the figure below:

In this manner, the user can dynamically link widgets to obtain specialized data. Widgets can be linked across multiple layers also which will be discussed in the Dashboard Layers, Views and Tabs section of the Training Manuals.
