1. Click on hamburger icon.

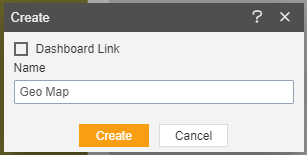

3. The Create Dashboard Dialog box will pop up on screen. Enter Dashboard Name as shown in Figure.

4. Click on Create After entering Dashboard Name in dialog box.

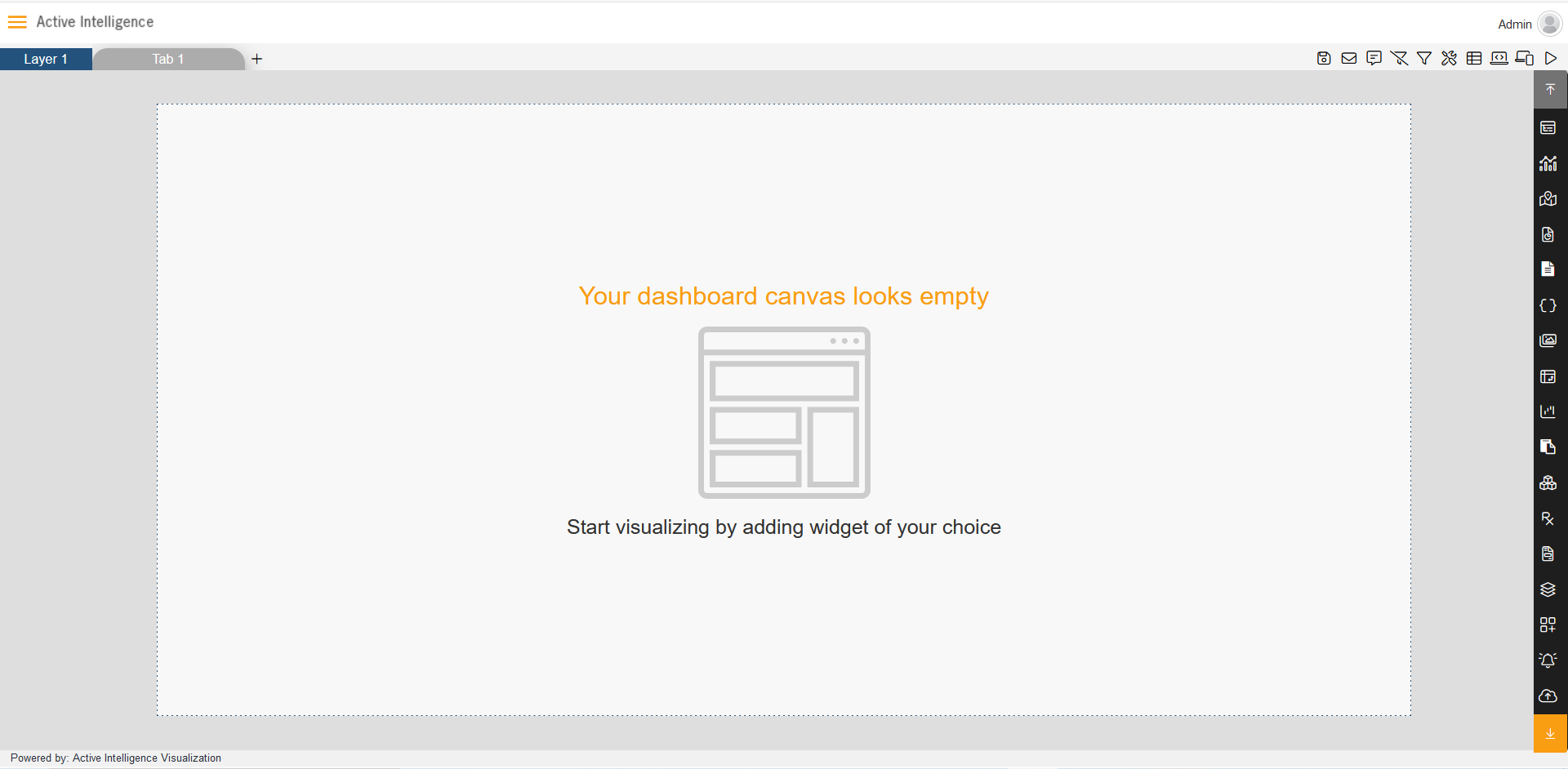

5. You will see an Empty Dashboard, As shown in figure below:

6. From Right Vertical Menu Select the Map Widget icon.

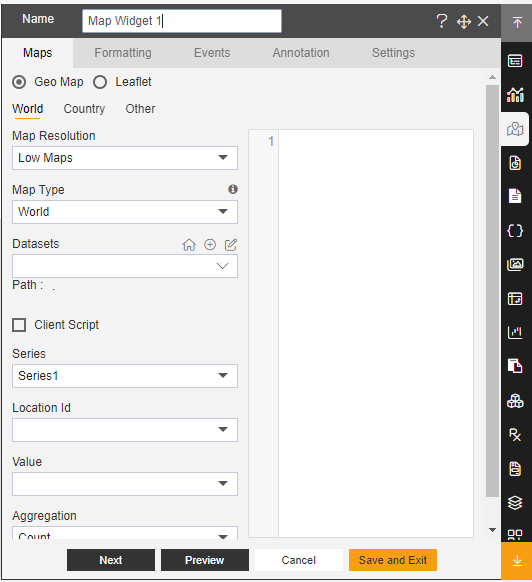

7. The Edit menu box appears as you click on Map icon. And a widget gets added in content place automatically in dashboard, As shown in Figure below:

8. Enter Following details in Map Property:
Map Resolution: Low Maps
Map Type: World
Dataset: Salesb.ds
Location Id: Country
Value: ProductLine
Aggregation: Count

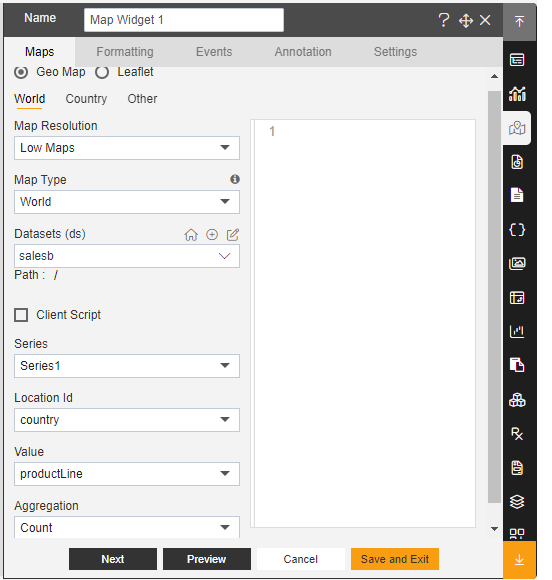

9. Fill above details in edit box, As Shown in figure;

10. Click on Preview and Save and Exit.

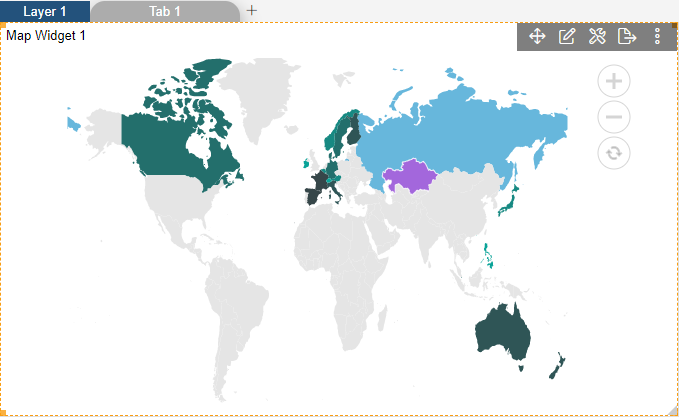

11. Now, match your Geo Map with the below example, it should look like the figure below:
