Backup File:

1. Open command prompt and go to location of bin folder in pgsql. As shown in figure below:

• location: C:\aiv_postgreNOV2\pgsql\bin
• aiv_postgreNOV2: name of installed aiv in local machine.

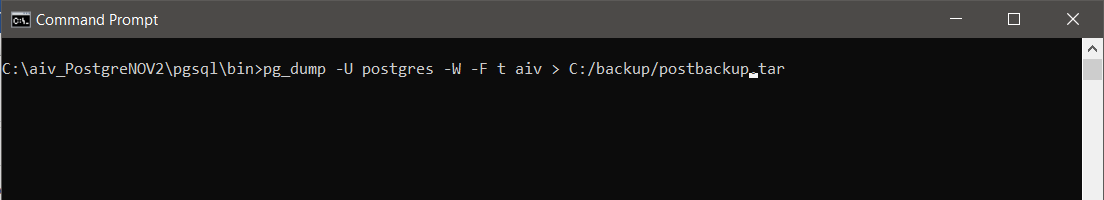

2. Take backup using below command:

pg_dump -U postgres -W -F t aiv > C:/AIV/backup.tar

• postgres: stand for default username.

• aiv: stand for default database name.

• AIVHUB: stand for default password.

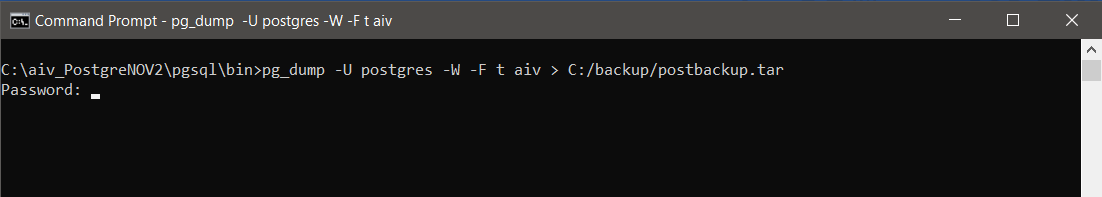

3. Insert postgreSQL password after adding the command, as shown in figure below:

4. As per 2nd point, the default password of PostgreSQL is “AIVHUB”. Add password and hit enter button. it will look as figure below:

5. Check the backup file at the specified location.

Restore backup file:

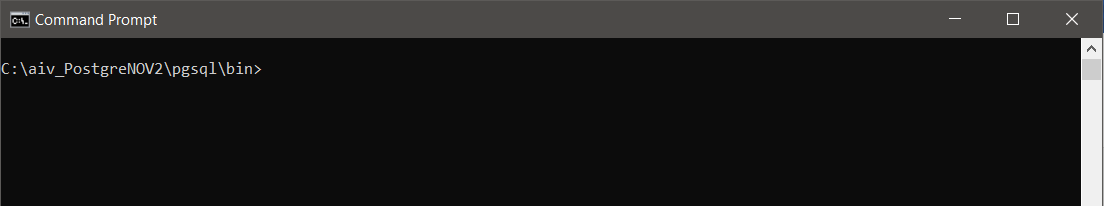

1. open file location of postgres in command prompt, as shown in figure below:

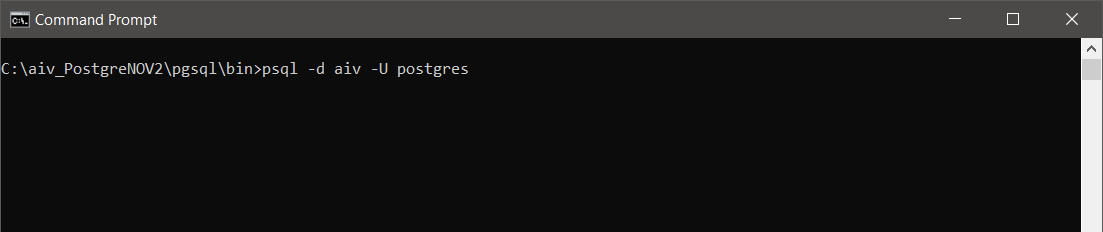

2. Login to postgreSQL using command:
psql –d [database name] –U [username]

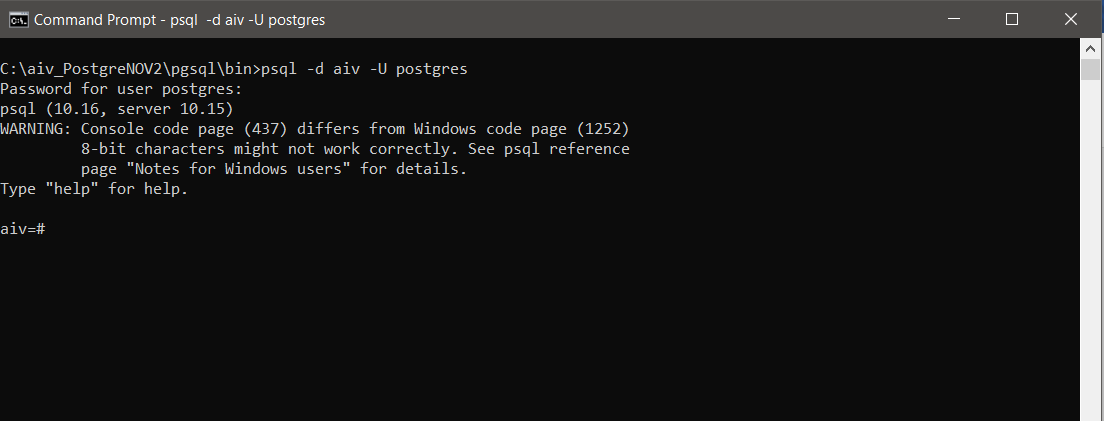

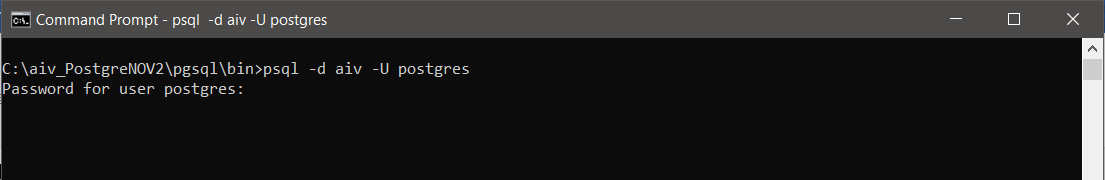

3. Insert Password, hit enter button. it will login into postgres as shown in figure below:

Note: Default password: AIVHUB

4. The password may not be visible while typing in command prompt. as shown in figure below:

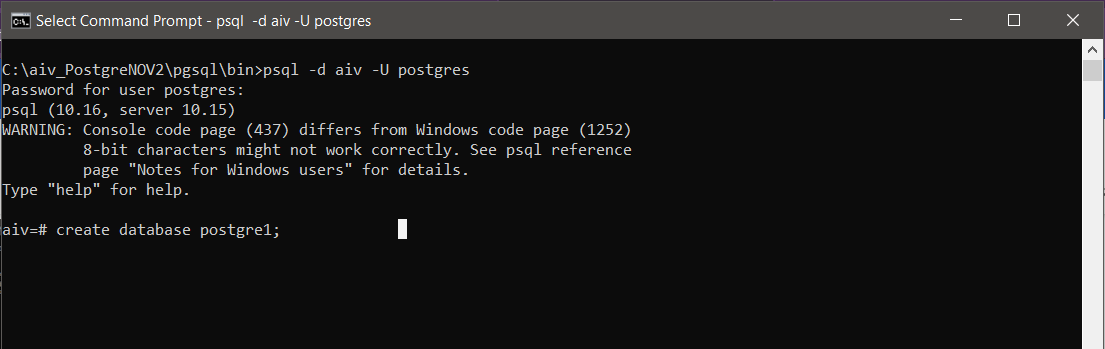

5. After login, add command to create database as follows:
command line: create database postgre1;

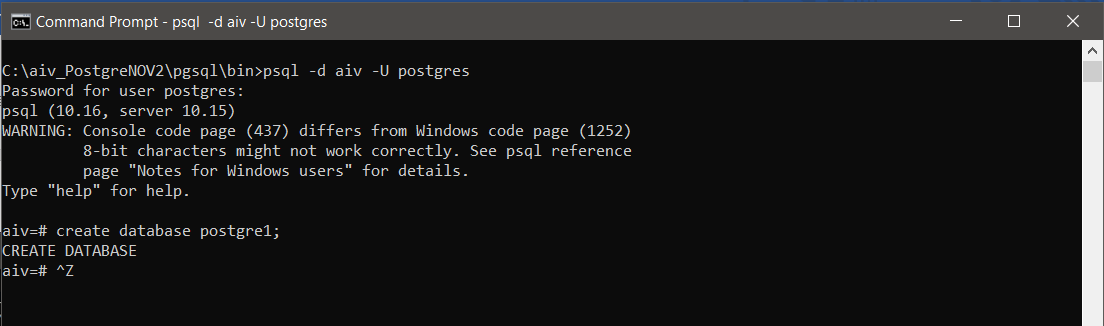

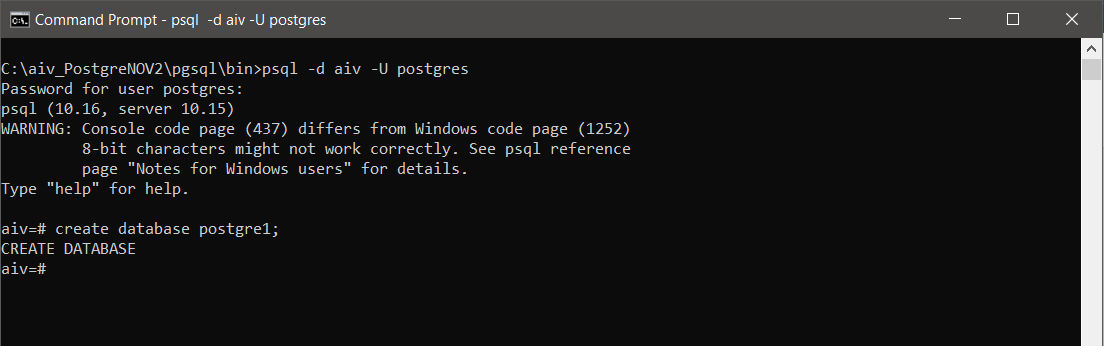

6. The command prompt will show the CREATE DATABASE alert as shown in figure below:

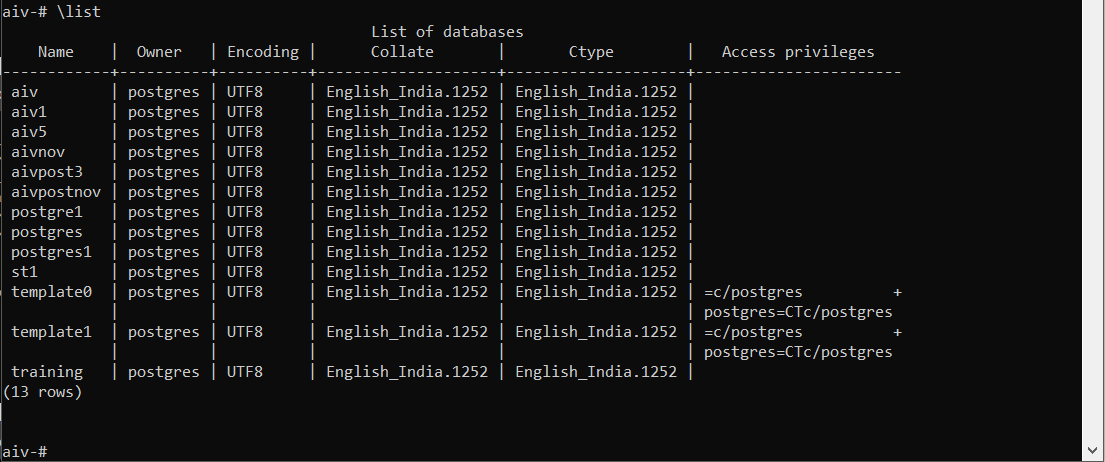

7. To see the available list of databases in AIV, user needs to insert command as follows:
> command: \list
> Hit enter after adding command.

8. Now press “ctrl + z” to logout from postgres.

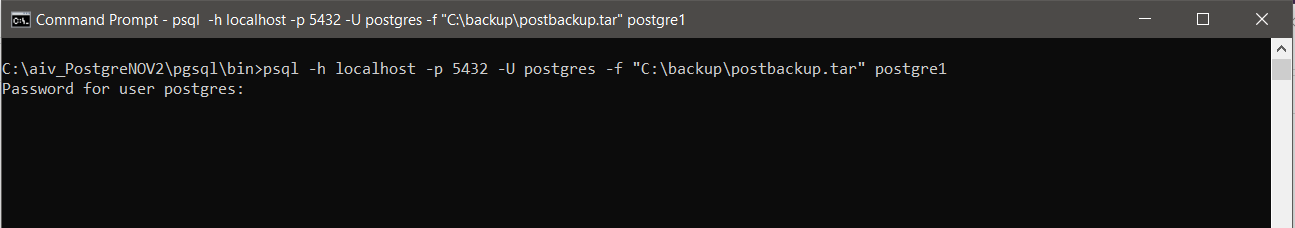

9. Now, add command to Restore the dump using command as follows:
Command: psql -h localhost -p 6432 -U [Postgres username] -f "[C:\path location\filename.tar]" [database name]
Example: psql -h localhost -p 6432 -U postgres -f "C:\backup\postbackup.tar" postgre1

• 6432: Port number, the default number is 6432, it’s different from the below figure.
• postgres: Default username of PostgreSQL
• C:\backup\postbackup.tar: Example location of the dump file.
• postgre1: Database name which is created by user.
