Value Axis > Positive Title
The Positive title is used to give title over the base line, the positive title gets placed over the (0) Zero in chart.
1. To enable the positive title in chart, you need to click on the positive label toggle button.

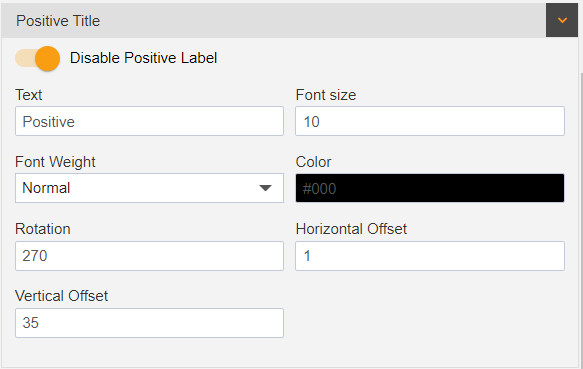

2. As user enables the function, its control appears in edit box.
-
Text: user can insert text as required in positive title.
-
Font Size: user can set font size in positive title.
-
Font weight: user can set font style from font weight.
-
Color: user can color the positive title, and also put color code to get required color.
-
Rotation: The rotation is used to give required rotation in title position.
-
Horizontal Offset: when user increases the value from 0, It goes from left to right, when user decreases the value then it goes from right to left.
-
Vertical Offset: when user increases the value from 0, it goes from top to bottom in chart, and when user decreases the value it goes from bottom to top in charts.

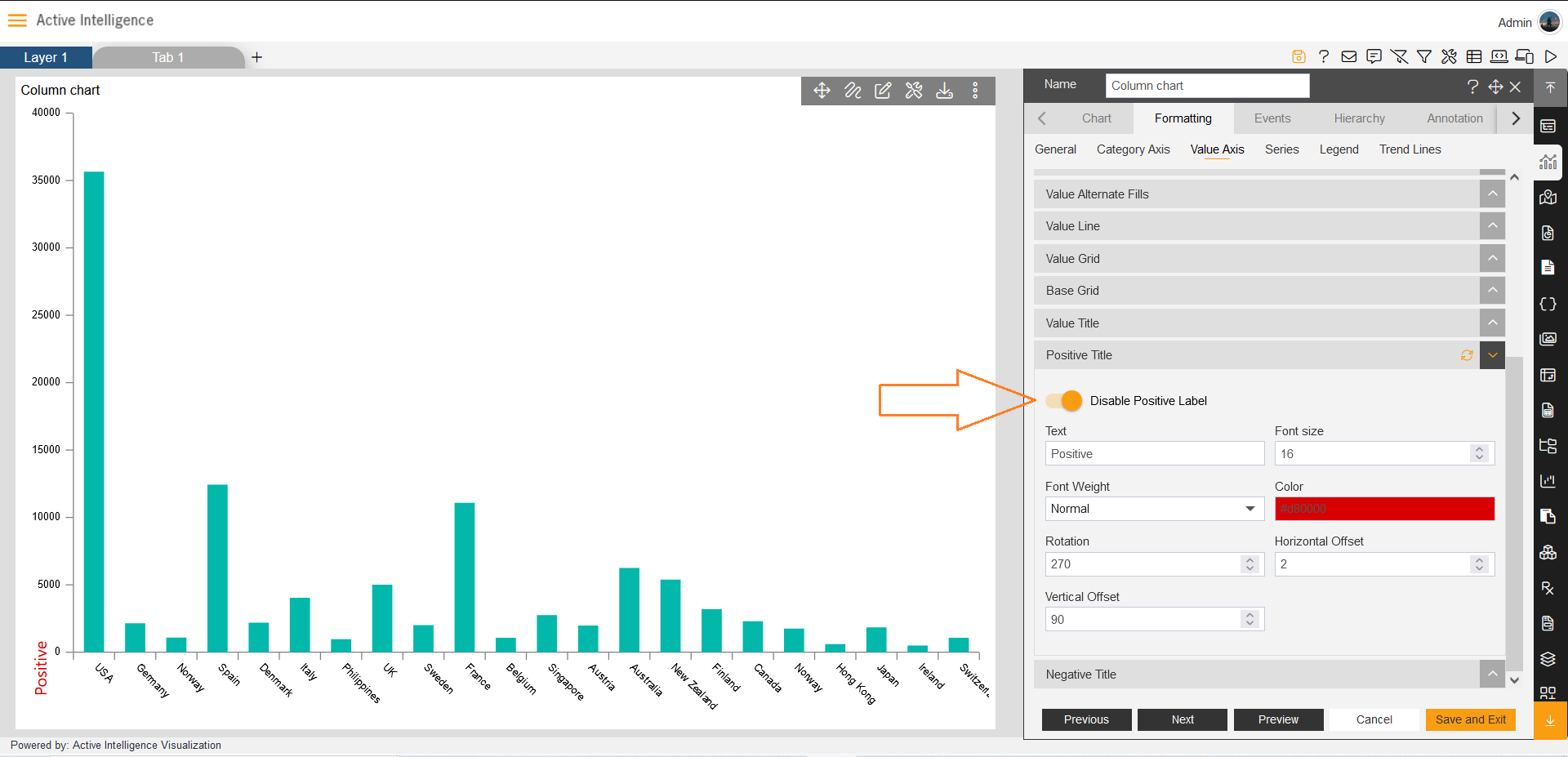

Example dashboard:
